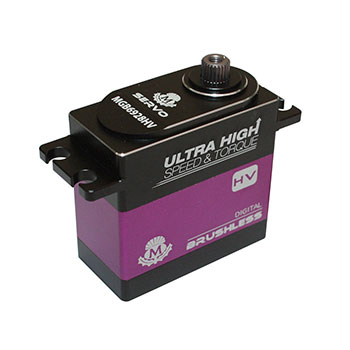

MACGREGOR MGB6928HV 28KG/0.06S HV BRUSHLESS DIGITAL SERVO

FEATURES:

• High Performance, Standard Size, High Voltage Digital Servo
• High-Precision 7075 Aluminium Gear
• Long-life Potentiometer
• Full CNC Aluminium Case, with Anodised Purple Centre Case
• High Quality Brushless Motor
• Dual Ball Bearing
• Waterproof
• 25T Spline
• Suitable for 1/8,1/10 Nitro Car, upto 60CC Aeroplane, 600-800 Class Helicopter CCPM

OVERVIEW

The MGB6928HV is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor’s range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.

MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

SPECIFICATIONS

MGB6928HV Full Specification Sheet – [ Download ]
