MACGREGOR MGB5216HV 16.0KG/0.08S BRUSHLESS HIGH VOLTAGE SERVO

FEATURES:
High performance digital mini servo
High-precision steel gear
High quality brushless motor
Full CNC aluminium hulls and structure
Dual ball bearings
Super long life
25T (Futaba Type) Spline
JR style plug

DESCRIPTION:
The MGB5216HV is a ultra high speed and torque brushless midi digital servo, part of MacGregor’s range of high voltage servos designed for General use in RC Jets, Aeroplanes, Cars & Helicopters.

MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

SPECIFICATIONS:
Dead band: 2µs default
Working frequency: 1520µs / 330hz
Motor: Brushless Motor
Gearset: Steel
Spline: 25T
Operating Voltage: 5.0 ~ 8.4V
Operating Speed (5.0V): 0.14sec/60°
Operating Speed (6.0V): 0.11sec/60°
Operating Speed (7.4V): 0.09sec/60°
Operating Speed (8.4V): 0.08sec/60°
Torque (5.0V): 10.5kg.cm
Torque (6.0V): 11.5kg.cm
Torque (7.4V): 15.0kg.cm
Torque (8.4V): 16.0kg.cm

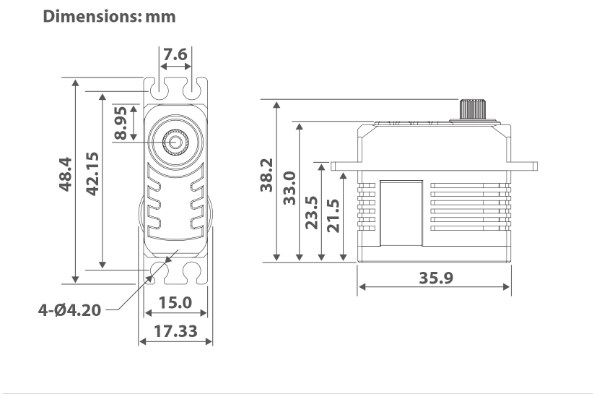

Dimensions: 36 x 15 x 33mm
Weight: 52g
Connector Wire Length: 220mm
Bearing: 2BB
