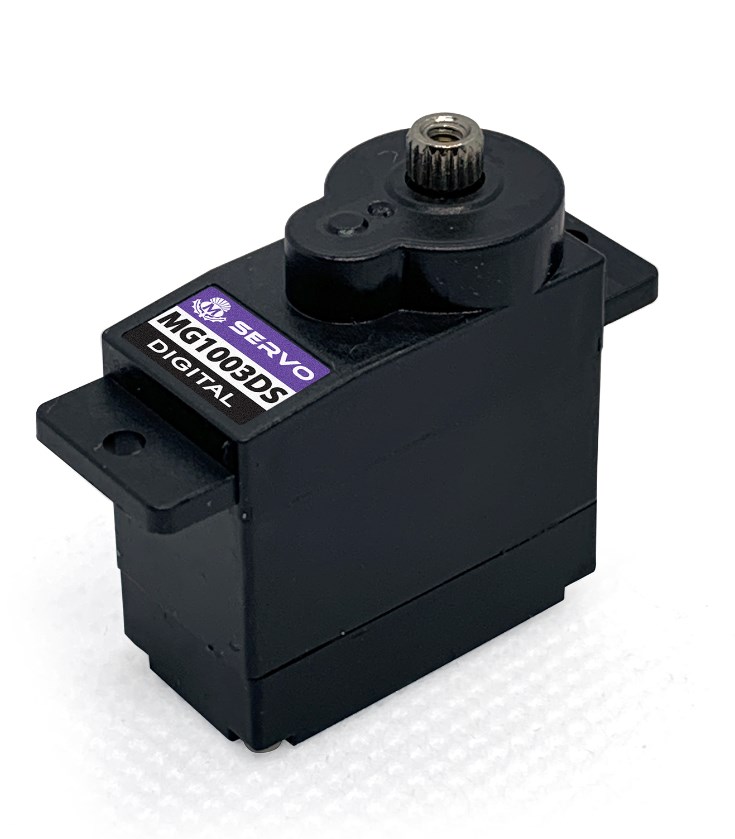

MACGREGOR MG1003DS 2.5KG.CM/0.10S MICRO DIGITAL SERVO

FEATURES:
High performance mini digital servo
High-precision metal gears
Single Ball Bearing
JR style lead and plug

OVERVIEW
The MG1003DS is part of MacGregor’s range of digital servos and superceeds the MG1203DS. This mini digital voltage is ideal for small-sized models (Aircraft, Helicopters and Cars) especially shock flyers and foamies.

SPECIFICATIONS:
Operating Voltage: DC 4.8 – 6.0V
Working frequency: 1520µs / 333hz
Motor: Core Motor
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6.0V): 0.10sec/60°
Stall Torque (4.8V): 2.2Kg.cm
Stall Torque (6.0V): 2.5kg.cm
Dimensions: 23.2 x 12 x 25.5mm
Weight: 11g
Bearing: 1BB
