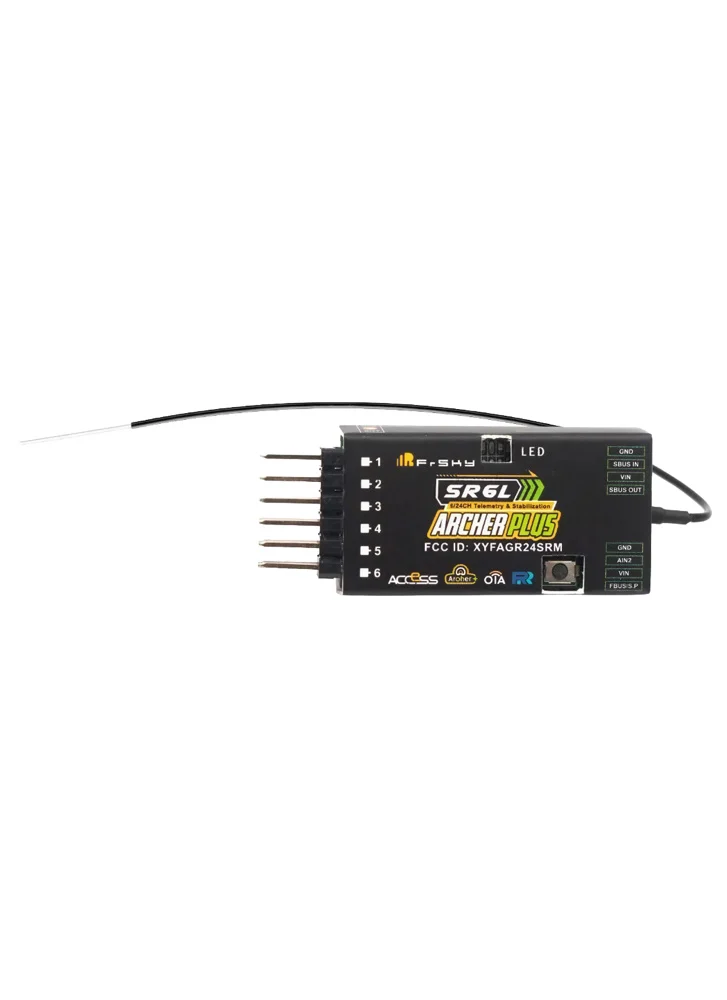

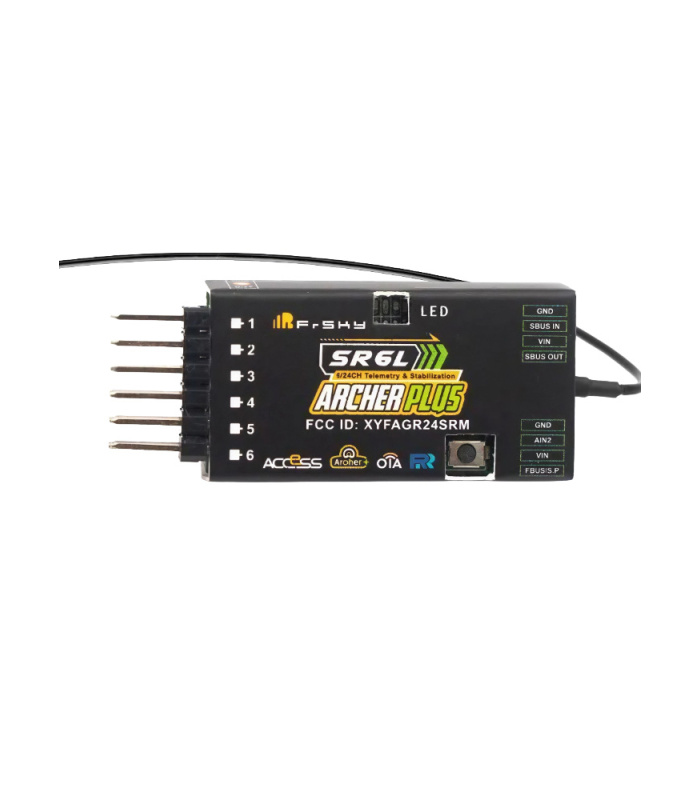

FrSky Archer Plus SR6 Lite Receiver

The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

The AP Lite-series 6-channel receivers feature a compact and lightweight design and are equipped with a 2.4GHz signal antenna. The R6 LITE includes six standard 3-pin PWM output channels on one end, while the opposite end provides additional connectivity through SBUS In, SBUS Out, S.Port / FBUS, and AIN interfaces. Using the included adapter cable, these ports allow flexible integration for telemetry, redundancy, expanded channel output, and different system configurations.

The SR6L is a gyro-stabilised receiver with a built-in 3-axis gyroscope and 3-axis accelerometer, supporting multiple flight modes including Auto-Level, Stabilisation, Knife-Edge, and Hover modes. The stabilisation system has been enhanced with an additional group of stabilised channels (5 extra stabilised channels), allowing flexible channel mapping across different flight modes for advanced fixed-wing setups.

Through the specific S.Port cable, the receivers can be easily connected to a transmitter with an S.Port for the firmware upgrade, or sensors for the telemetry. When the S.Port is set to FBUS mode through the ETHOS system, the setting features of all FBUS-capable devices in the link can now be directly configured through the ETHOS system using Lua script tools, and in FBUS mode, the receivers can output 24 signal channels in total.
