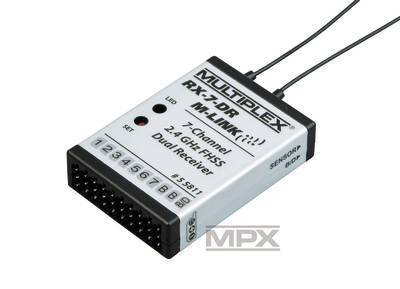

MULTIPLEX RX-7-Dr M-Link Receiver Warehouse Stock

High-quality seven-channel / nine-channel receivers exploiting MULTIPLEX 2.4 GHz M-LINK technology. These receivers utilise the latest SMT construction, and are suitable for all types of model. Their compact dimensions and in-line connector arrangement allow them to fit even in models with limited internal space. These receivers feature two complete receiving circuits operating in parallel (receiver diversity). In conjunction with a special signal amplification circuit this ensures very high sensitivity, excellent reception quality and maximum effective system range.

• HOLD / FAIL-SAFE function
• Telemetry / Feedback channel capability
• Integral sensor interface for connecting external sensor modules (max. 16)
• Prepared for dual-receiver diversity operation (diversity lead # 8 5070 required)
• Integral error counter / data logger (voltage errors, signal errors)
• MULTImate compatible
• Integral PC interface

• Servo channel count:	7
  Reception system:	2.4 GHz FHSS
  (Frequency Hopping Spread Spectrum)
  Operating voltage:	3.5 V &hellip 9.0 V
  Power supply:	4 – 5 NiXX cells, 2S LiPo / LiIo
  Permissible operating temperature range:	– 20°C &hellip + 55°C
  Dimensions (L x W x H):	approx. 55 x 35 x 11,5 mm
  Weight:	approx. 25 g
