Futaba T26SZ, 26-Channel Air Radio Transmitter Only, Multi Mode

Product Description

Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the ’26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we re tempted to say, the perfect choice. Here’s just a hint of what to expect:

S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

COLOUR LCD MAIN DISPLAY
HVGA 4.3″ full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

LCD SECONDARY DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.

SD CARD PORT
Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-ION
2100mAh offers a comfortable operating duration and real peace of mind.

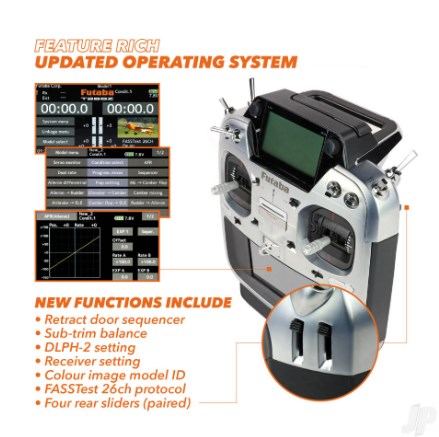

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

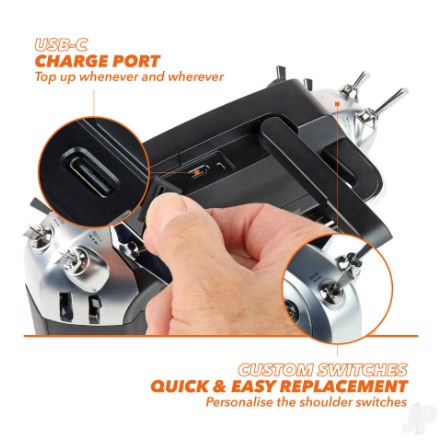

SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

Key Programming Features

For full list see manual

• • Model name (15 characters)
  • Sub trim
  • Sub trim balance
  • Servo reverse
  • Fail-safe
  • Exponential
  • Throttle cut
  • End point / ATV (30 – 140%)
  • Servo speed
  • Trainer function
  • Servo monitor
  • Trim setting (step, rate, mode)
  • Data editor (for S.Bus equipment)
  • 10 programmable mixers
  • 30 pre-programmed mixers
  • Aileron differential
  • Air brake
  • Flap trim
  • Flap setting
  • Butterfly
  • Camber mix
  • Camber flap-elevator
  • Elevator to camber
  • Aileron to camber flap
  • Aileron to rudder
  • V tail
  • Ailevator
  • Winglet
  • Aileron to brake flap
  • Snap roll
  • Servo monitor
  • Twin timers
  • Stick alarm
  • Battery fail-safe
  • Gyro sense
  • Multi engine
  • Motor mix
  • Condition name
  • AFR (dual rate)
  • AFR (curve mode)
  • AFR curve point number (17 points)
  • Logic switch (condition switch only)
  • Acceleration mixing
  • Pitch curve / pitch trim
  • Throttle curve / throttle hover trim
  • Pitch to needle mix
  • Revolution mix
  • Swash ring
  • Idle down
  • Throttle limiter
  • Swash setting
  • Swash AFR
  • System timer
  • Function setting
  • Governor

Telemetry functions

• Temperature
• RPM (magnetic & optic)
• Altitude
• GPS
• Voltage
• Receiver battery
• Current
• Data logging

Key Features

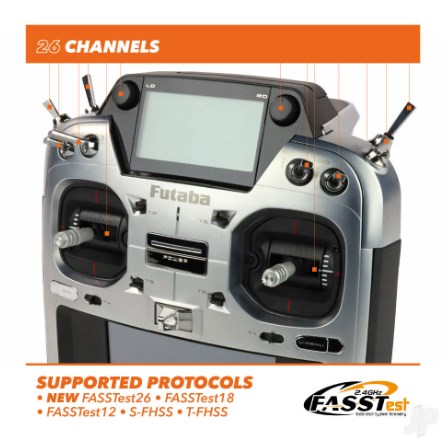

• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols.
• 26 channels (24+2).
• Full colour 4.3 inch touch screen.
• 3.0 LCD sub display.
• High quality finish.
• Model image display.
• Smooth non-contact stick potentiometer.
• Shoulder switch upgrade / replacement.
• Four rear sliders (paired).
• Vibration alert.
• Voice.
• Telemetry system.
• Four stick modes (1-4).
• MicroSD card software update.
• High capacity Li-Ion.
• Earphone jack.
• USB-C charging.
• Calendar clock.
• S.BUS I/F enabled.
• Wireless trainer system.
• 240 step sub trim.
• Sub trim balance.
• DLPH-2 settings.
• Receiver mode-setting port.
• Gyro setting for CGY755 / 760R / 770R / GYA553.
• 8 flight conditions.
• 30 pre-programmed mixers.
• 10 free programmable mixers.
• Retract and door sequencer.
• 13 fixed-wing types.
• 3 fixed-wing tail types.
• 2 fixed-wing rudder types.
• 8 helicopter swash types.
• Supports 14 telemetry sensor types.
