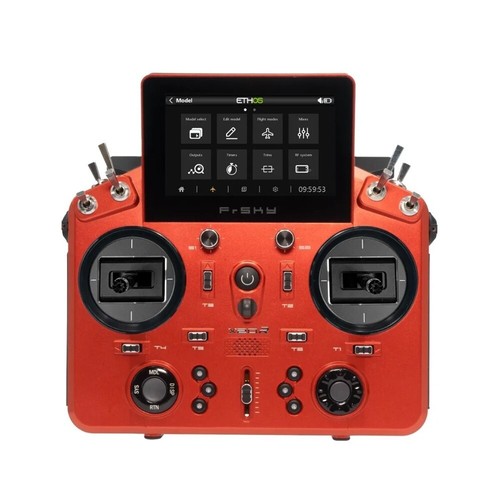

FrSky TANDEM X20RS Radio Transmitter – Cherry Red

Key Features:

• Built-in TD-ISRM RS Dual-Band RF Module (900M/2.4G TD, TW, ACCESS & ACCST D16)

• Easy travel-adjustable MC20R CNC gimbals (45°–60°) with 8° rotatable panel

• Dual-side haptic gimbal feedback for independent left/right vibration

• Upgraded robust antenna handle & dual external LoRa antenna connectors

• 800×480 high-brightness outdoor touchscreen

• 2 angle-adjustable slider levers, 2 knobs, 4 standard trims + 2 extra trims

• 6 front quick-mode buttons & 2 rear momentary buttons

• All-CNC metal caps on knobs, trims, and central linear-slider

• Built-in 8GB flash storage & TTS (Text-to-Speech) function

• Digital audio power amplifier & 6-axis gyroscope sensor

• High-speed PARA wireless training system

• USB Type-C data transmission & recharge system

• Compatible with ACCST D16, ACCESS, TD, and TW receivers

• Carry case

Perfect For:

• Professional RC pilots seeking precision and durability

• Long-range outdoor RC aircraft and drones

• Competitive RC flying with advanced telemetry and feedback

• Pilots wanting fully customizable gimbal travel and tactile feedback

Product Summary:

The FrSky TANDEM X20RS transmitter combines cutting-edge RF performance with ergonomic design and advanced control features. From adjustable MC20R gimbals and dual haptic feedback to high-brightness touchscreen and extensive protocol compatibility, it’s built for precision, comfort, and reliability in every flight.

Specifications:

• Dimensions: 205 × 213 × 90 mm (L × W × H)

• Weight: 892g (Battery Excl.) / 1024g (Battery Incl.)

• Operating System: ETHOS

• Channels: Up to 24

• Internal RF Module: TD-ISRM RS Dual-Band

• Built-in Flash Storage: 8GB

• Operating Voltage Range: 6.5–8.4V (2S Li-battery)

• Operating Temperature: -10°C ~ 60°C

• Operating Current: 600mA@7.4V (typical)

• Charging Current: ≤1A ±200mA

• Recharge System: USB Type-C

• Screen Resolution: 800×480, backlit touchscreen

• Compatibility: ACCST D16, ACCESS, TD, TW receivers

• External Module Bay: Lite-type
